1 Pack SS1 Condensate Overflow Switch, SS1 Float Switch with 3/4 Inch Adaptor and 6FT Wire, HVAC Overflow Shut Off Float Switch for HVAC System, Detect Condensate Overflow (White)

If you're concerned about your furniture, floors, wall and ceilings getting soaked from condensation leaks while using your HVAC, installing a float switch is highly recommended. The SS1 vertical float switch mounts in a primary or auxiliary drain line and shuts the system off should water back up. Specifications: Model: SS1 Material: White PVC Carry Capacity 1.25 Amp Working temperature: -20 +80℃ Wire length 6feet (1.8M) Product List 1. 3/4" NPT X 3/4" SLIP PVC Adaptor 2. 3/4” X1" SLIP PVC Bushing 3. 1"X3/4"X1" SLIP Tee (Schedule 40/PVC 1) 4. 72"-Inch (Prewired/Potted) 5. Electrically Potted Switch/Cap Assembly 6. 3/4" SLIP Plug for Close Coupled Applications Notice: We come with instructions, please read and comply with all warnings, cautions and instructions prior to starting installation, make sure the installation goes smoothly.

• Effectively Detect Condensate Overflow: The SS1 condensate overflow switch features a water sealed magnetic reed switch, effectively detects clogged A/C condensate drains and shuts off system to prevent water damage to floors, wall and ceilings; When a blockage occurs, the float within the fitting rises with the rising condensate level; The magnetic element within the float triggers the reed switch to shut down the system and stops operation

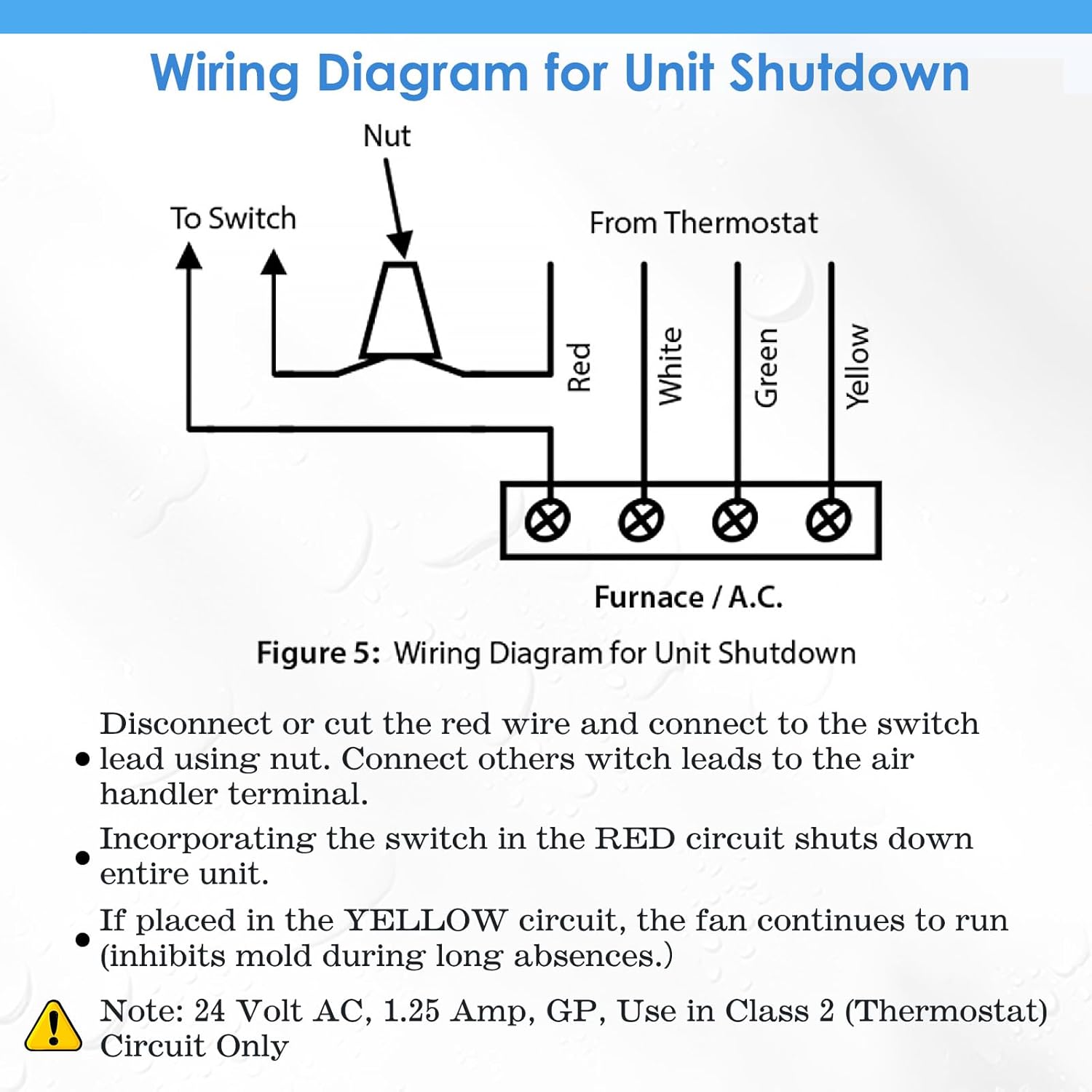

• Easy to Install: Install the SS1 Air Conditioner Float Switch with ease; Low voltage condensate overflow shut off switch can be installed horizontally or vertically, inline or on the primary pan's auxiliary drain outlet by using the included 3/4" adapter, bushing and cap; Besides, you can enjoy the flexibility of installation, as the switch can be installed on a sloping line and does not need to be level or plumb; And then connect the 6ft wire to the either the red or yellow thermostat wires
• Quality Material: Made of quality Schedule 40 PVC plastic components, this air conditioner float switch ensures a long time use; Well made magnetic reed switch will not stick or rust
• Easy to Clean: This water float switch is designed with a detachable cap that allows you to remove it with tapered cams for cleaning after prolonged use, ensuring both cleanliness and optimal performance; Tips: you can use PTEE tape for a high watertight seal
• Wide Application: SS1 condensate float switches can be installed on primary drains or auxiliary drain outlet, easy access to the switch and the primary drain line for service; Every home with an HVAC should have a HVAC float switch
